Logistic Regression

<Logistic Regression>

    1. Classification

    2. Hypothesis Representation

    3. Decision boundary

    4. Cost function

    5. Simplified cost function and gradient descent

    6. One-vs-all

---

Classification

Email: Spam / Not Spam ?

Online: Transactions: Fraudulent (Yes / No) ?

Tumor: Malignant / Bening ?



→ y ∈ {0, 1}

• 0: "Negative Class"
• 1: "Positive Class"

from: Andrew Ng

Hθ(x) = θ^Tx

• Hθ(x) ≥ 0.5, predict "y=1"
• Hθ(x) < 0.5, predcit "y=0"

Classification: y = 0 or 1

    Hθ(x) → '> 1' or '< 0'

---

Hypothesis Representation



Sigmoid function

z = θ^Tx

hθ(x): input x에 대하여 y=1 일 때의 확률

• P(y=0｜x; θ) + P(y=1｜x; θ) = 1
• P(y=0｜x; θ) = 1 - P(y=1｜x; θ)

---

Decision boundary

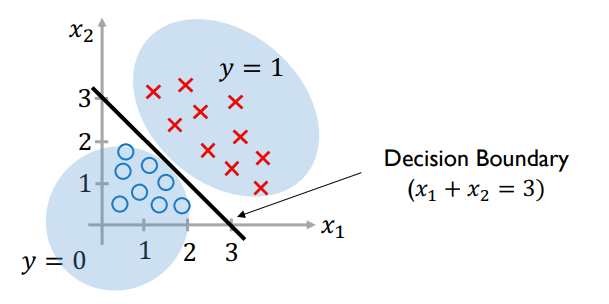

Linear decision boundary

hθ(X) = g(θ0 + θ₁X₁ + θ₂X₂ + ...)

From: Andrew Ng



Non-linear decision boundaries

hθ(X) = g(θ0 + θ₁X₁ + θ₂X₂ + θ₃X₁^2 + θ₄X₂^2 + ...)

From: Andrew Ng



---

Cost function





Cost function in Logistic regression

Cost(hθ(x), y)

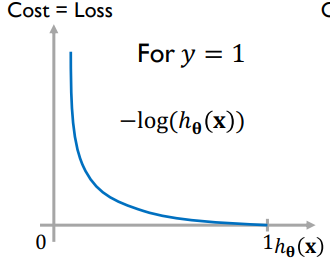

• -log(hθ(x))       if y = 1

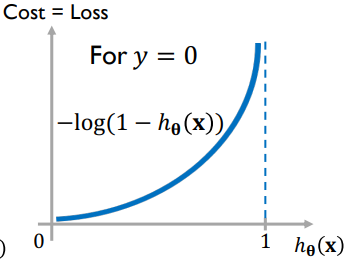

• -log(1 - hθ(x))  if y = 0

---

Simplified cost function and gradient descent





Simplified cost function





min J(θ):

upadte all &theta;j



Gradient Descent

update all &theta;j



---

one-vs-all



Multiclass classification

Email foldering/tagging: Work(y=0), Freinds(y=1), Family(y=2), Hobby(y=3)

Medical diagrams: Not ill(y=0), Cold(y=1), Flu(y=2)

Weather: Sunny(y=0), Cloudy(y=1), Rain(y=2), Snow(y=3)





Binary classification vs. Multi-class classification

From: Andrew Ng





One-vs-all (one-vs-rest):

From: Andrew Ng



→ 각 class i마다 y = i 확률 예측



maimize 한 class i 선택





ex)

3 binary-class classification model

2X₁ + 3X₂ + 4

-X₁ + 5X₂ - 3

-4X₁ + X₂ + 2



X₁ = 1, X₂ = 2 일 시,

Sigmoid output

2*1 + 3*2 + 4 = 12  → 99.95%

-1*1 + 5*2 - 3 = 6   → 98%

-4*1 + 1*2 + 2 = 0  → 50%



Softmax output

e¹² / (e¹² + e^6 + e^0) = 92%

e^6 / (e¹² + e^6 + e^0) = 7%

e^0 / (e¹² + e^6 + e^0) = 1%
